BSC – LED Screen Panels

Display Dimension (mm) (w*h) : 125x1000

Profile Dimension (mm) (w*h) : 125x1025

Resolution (dot) (w*h) : 50x400

LED Specification : 1515

Pixel Pitch (mm) (horizontal / vertical) : 2.5

Pixel Density (dot/m²) : 160000

Transparency Rate : 85%

Brightness (cd/m²) : ≥1000 (Black Body)

Maximum Power Consumption (w/m²) : 608

Average Power Consumption (w/m²) : 244

Weight (kg/pcs) : 0.2

Power Box Weight (kg/pcs) : Type B and D is 1.1kg

Color Temperature (K) : 3000~10000

Scanning Mode : Light & Driver Integrated, Static Driving

rame Rate (Hz) : 60~120

Lifespan : ≥100,000.00 hours

Pixel Configuration : 16bit

Input Voltage : AC100~240V 50/60 Hz

Working Voltage for Module : DC 4.2V ± 0.2V

Working Temperature : Temperature -20℃~50℃

Working Humidity : Humidity: 20%~85% (Without Condensation)

Storage Temperature : Temperature -20℃~60℃

Storage Humidity : Humidity: 10%~85% (Without Condensation)

Protection Degree : IP 20

Installation Method : PCB Side Glued

Installation Environment : Indoor

Contact Now

BSC – LED Screen Panels

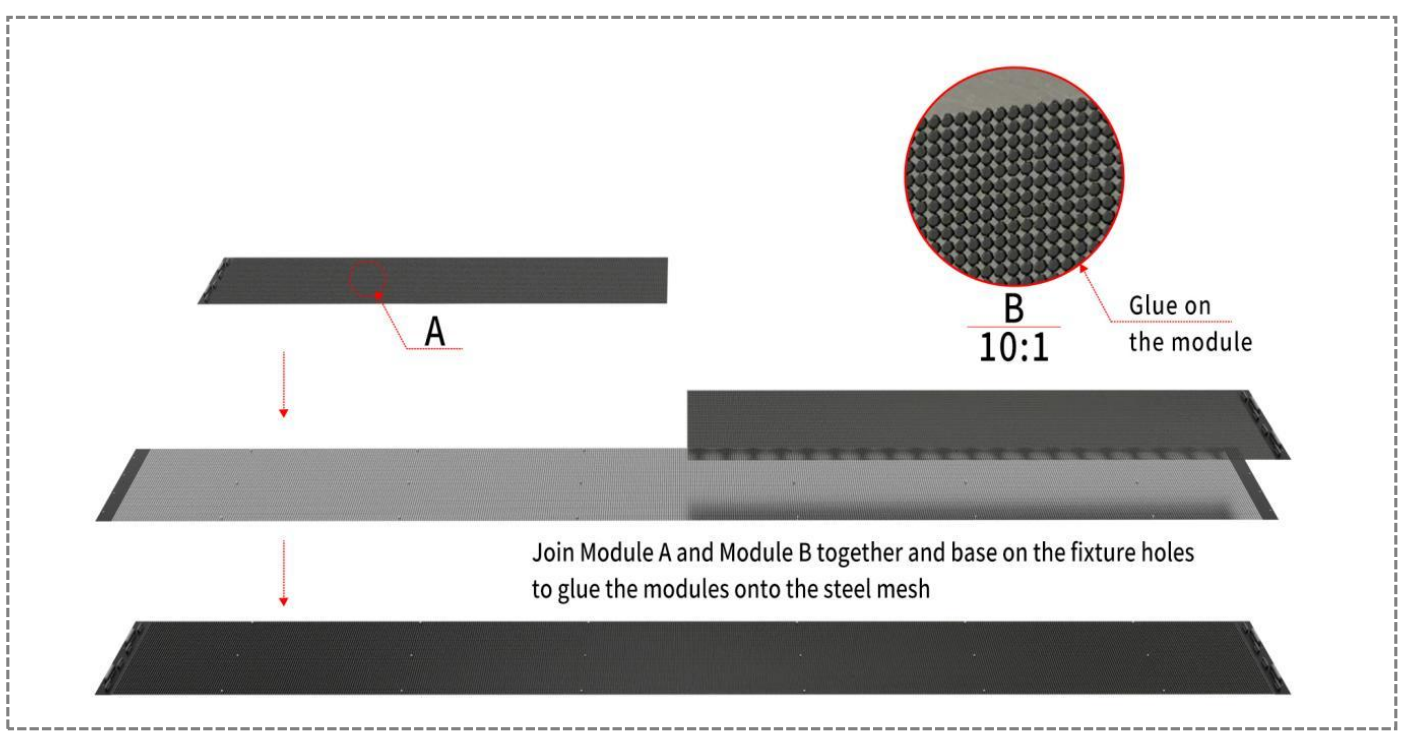

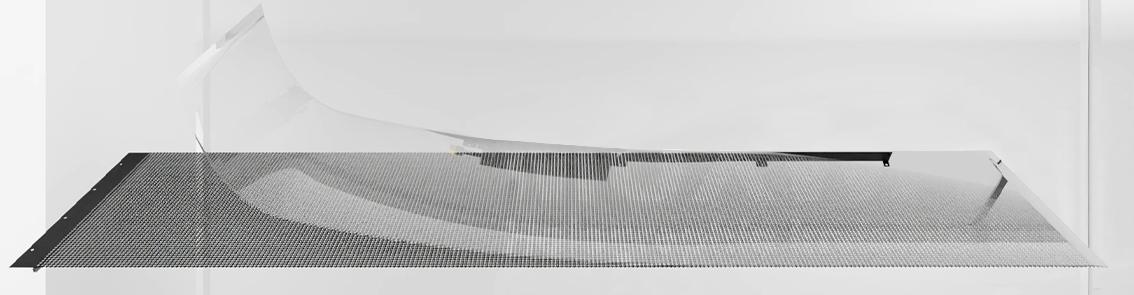

The module weighs only 6 kg/m² with a slim 1.8 mm profile. Standard modules support flexible size combinations for seamless splicing and are the preferred choice for direct glass mounting, suitable for both single-sided and double-sided display applications.

BSC – LED Screen Panels

LED Screen Panael for clothes store

BSC – LED Screen Panels

LED Screen Panael for company reception

LED Screen Panael for POP MART

BSC – LED Screen Panels

LED Screen Panale for company lobby

LED screen panael aging test in manufacutre

BSC – LED Screen Panels

Product Attributes

Parameter	125x1000/125x1175/125x1475	250x1000/250x1172250x1469/250x1969	250x1000/250x1175/250x1475/250x1975
Display Dimension (mm) (w*h)	125x1000/125x1175/125x1475	250x1000/250x1172/250x1469/250x1969	250x1000/250x1175/250x1475/250x1975
Profile Dimension (mm) (w*h)	125x1025/125x1200/125x1500	250x1025/250x1197/250x1500/250x2000	250x1025/250x1200/250x1500/250x2000
Resolution (dot) (w*h)	50x400/50x470/50x590	64x256/64x300/64x376/64x504	40x160/40x188/40x236/40x316
LED Specification	1515	2121	2121
Pixel Pitch (mm) (horizontal / vertical)	2.5-2.5	3.91-3.91	6.25-6.25
Pixel Density (dot/m²)	160000	65536	25600
Transparency Rate	85%	92%	95%
Brightness (cd/m²)	≥1000(Black Body)	≥4500/≥4500≥3000≥2550(White Body)	≥5000/≥5000/≥4500/≥3000
Maximum Power Consumption (w/m²)	608	684/684 /526 /520 (Black Body)	552/552/502/440
Average Power Consumption (w/m²)	244	274 /274 211 /211 (Black Body)	221/221/201/176
Weight (kg/pcs)	0.2/0.25/0.3	0.4/0.5/0.6/0/8	0.4/0/5/0/6/1
Power Box Weight (kg/pcs)	Type B and D is 1.1kg	Type B and D is 1.1kg	Type B and D is 1.1kg
Color Temperature (K)	3000~10000	3000~10000	3000~10000
Scanning Mode	Light & Driver Integrated, Static Driving	Light & Driver Integrated, Static Driving	Light & Driver Integrated, Static Driving
Frame Rate (Hz)	60~120	60~120	60~120
Lifespan	≥100,000.00 hours	≥100,000.00 hours	≥100,000.00 hours
Pixel Configuration	16bit	16bit	16bit
Input Voltage	AC100~240V 50/60 Hz	AC100~240V 50/60 Hz	AC100~240V 50/60 Hz
Working Voltage for Module	DC 4.2V ± 0.2V	DC 4.2V ± 0.2V	DC 4.2V ± 0.2V
Working Temperature	Temperature -20℃~50℃	Temperature -20℃~50℃	Temperature -20℃~50℃
Working Humidity	Humidity: 20%~85% (Without Condensation)	Humidity: 20%~85% (Without Condensation)	Humidity: 20%~85% (Without Condensation)
Storage Temperature	Temperature -20℃~60℃	Temperature -20℃~60℃	Temperature -20℃~60℃
Storage Humidity	Humidity: 10%~85% (Without Condensation)	Humidity: 10%~85% (Without Condensation)	Humidity: 10%~85% (Without Condensation)
Protection Degree	IP 20	IP 20	IP 20
Installation Method	PCB Side Glued	LED Side Glued, PCB Side Glued, Hanging Up	LED Side Glued, PCB Side Glued, Hanging Up
Installation Environment	Indoor	Indoor	Indoor
